CHARGING STATION

WITH FIXED CHARGING CABLE

Start
1

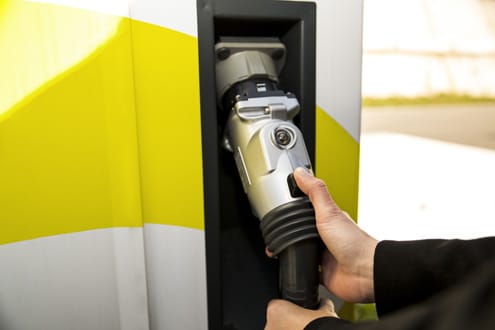

Press the release button on the plug to remove the charging cable from the station.
2

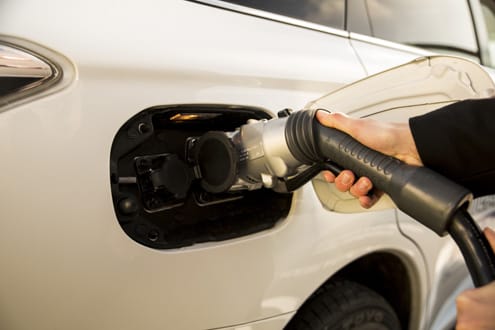

Insert the charging nozzle into the socket on your vehicle and pull the lever upwards until a clicking noise can be heard.
3
If necessary, lock your car with the central locking system.
4

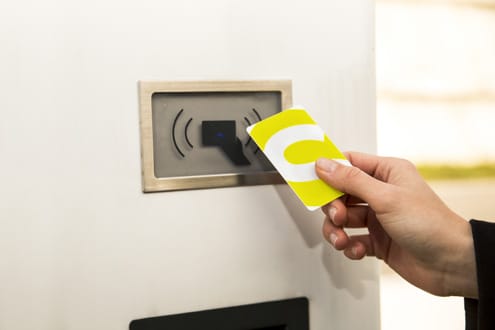

Hold your customer card up to the card reader for identification.
5

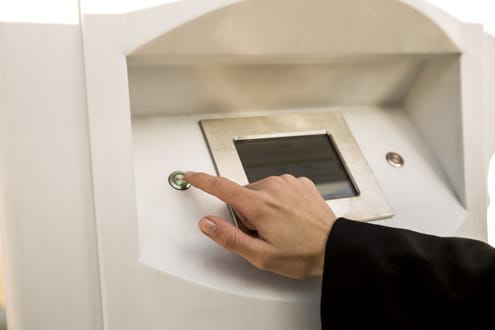

After successful authorisation, start the charging process by pressing the green button.
6

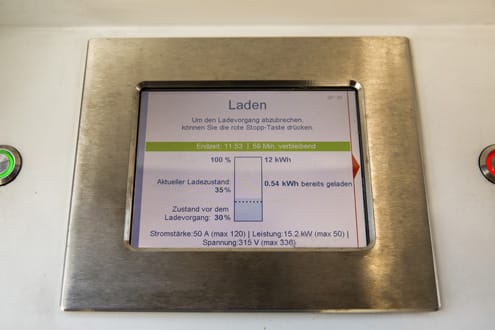

The display will show the battery charge level.
!

Important notice

The charging process will end automatically at 80% battery level. Repeat the charging process for a full charge. Re-identification with the customer card is not necessary.

End
1

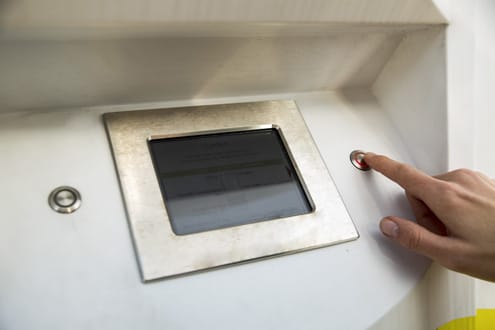

The charging process can be ended at any time by pressing the red button.
2

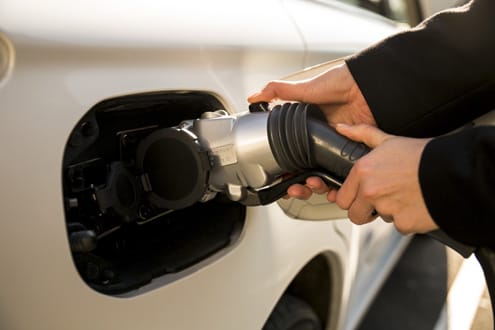

Disconnect the plug from the vehicle by pressing the release button.
3
Place the plug back in the holder on the charging station.
i

STOP IN CASE OF FAULT

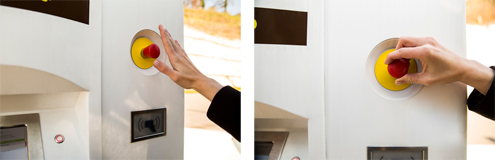

In case of danger, the charging process can be ended at any time by pressing the emergency stop button.

If you have pressed the emergency stop button, please put it back in its original position by pulling and turning.
