Wallbox

WITH AND WITHOUT CHARGING CABLE

An den SMATRICS Wallboxen können Sie Ihr E-Auto beschleunigt mit bis zu 22kW laden. Die tatsächliche Ladegeschwindigkeit ist abhängig vom Fahrzeug-Modell und der verfügbaren Ladeleistung an der jeweiligen Ladestation. Die verfügbare Leistung entnehmen Sie bitte der SMATRICS App oder der Ladestationenkarte auf der Webseite. Die Wallboxen finden Sie vor allem in Parkgaragen oder bei Einkaufszentren, wo Ihr E-Auto längere Zeit steht.

Overview

Start
1

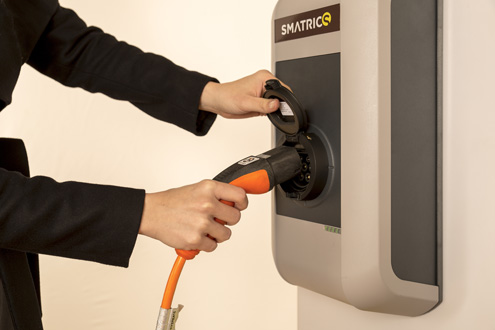

Model without charging cable: Open the cover of the wallbox and insert your charging cable into the charging socket of the wallbox first and then into the vehicle.

Model with charging cable: Insert the plug of the charging cable into the socket on your vehicle.

2

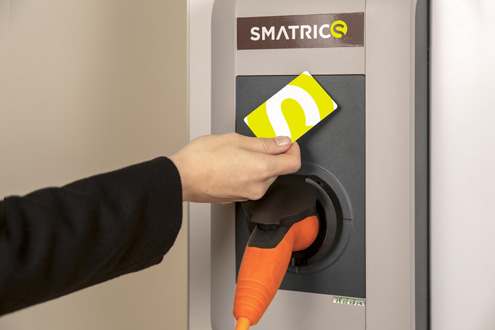

Hold your customer card up to the card reader. The security check can take up to 30 seconds.

3
After successful authorisation, the LED will flash green every 3 seconds.
4

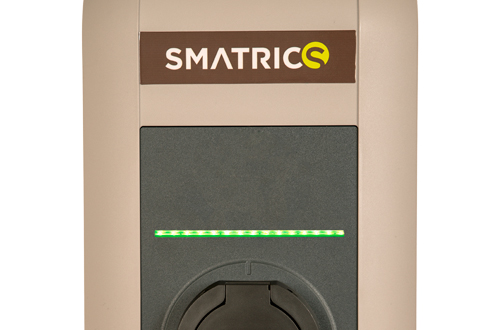

The charging process will start and this will be indicated by the green flashing LED.
End
1

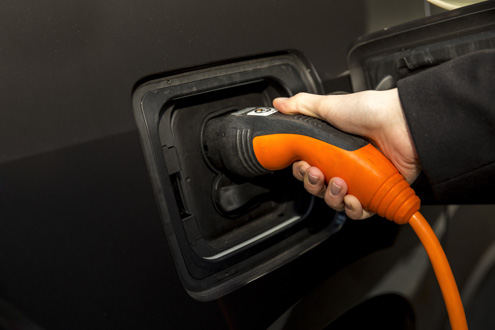

Remove the charging cable from the vehicle.
2

Model without charging cable: Remove the charging cable from the wallbox.

Model with charging cable: Roll the cable on the wallbox holder.Remove the charging cable from the vehicle.

It is NOT necessary to hold the customer card up to the card reader again.

!

IMPORTANT NOTE

The security check between the vehicle and wallbox can take up to 30 seconds.

i

FAULTS:

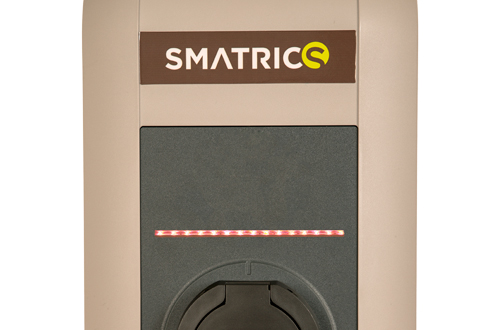

If the LED flashes red, please contact the service hotline +43 5 031 351 855
